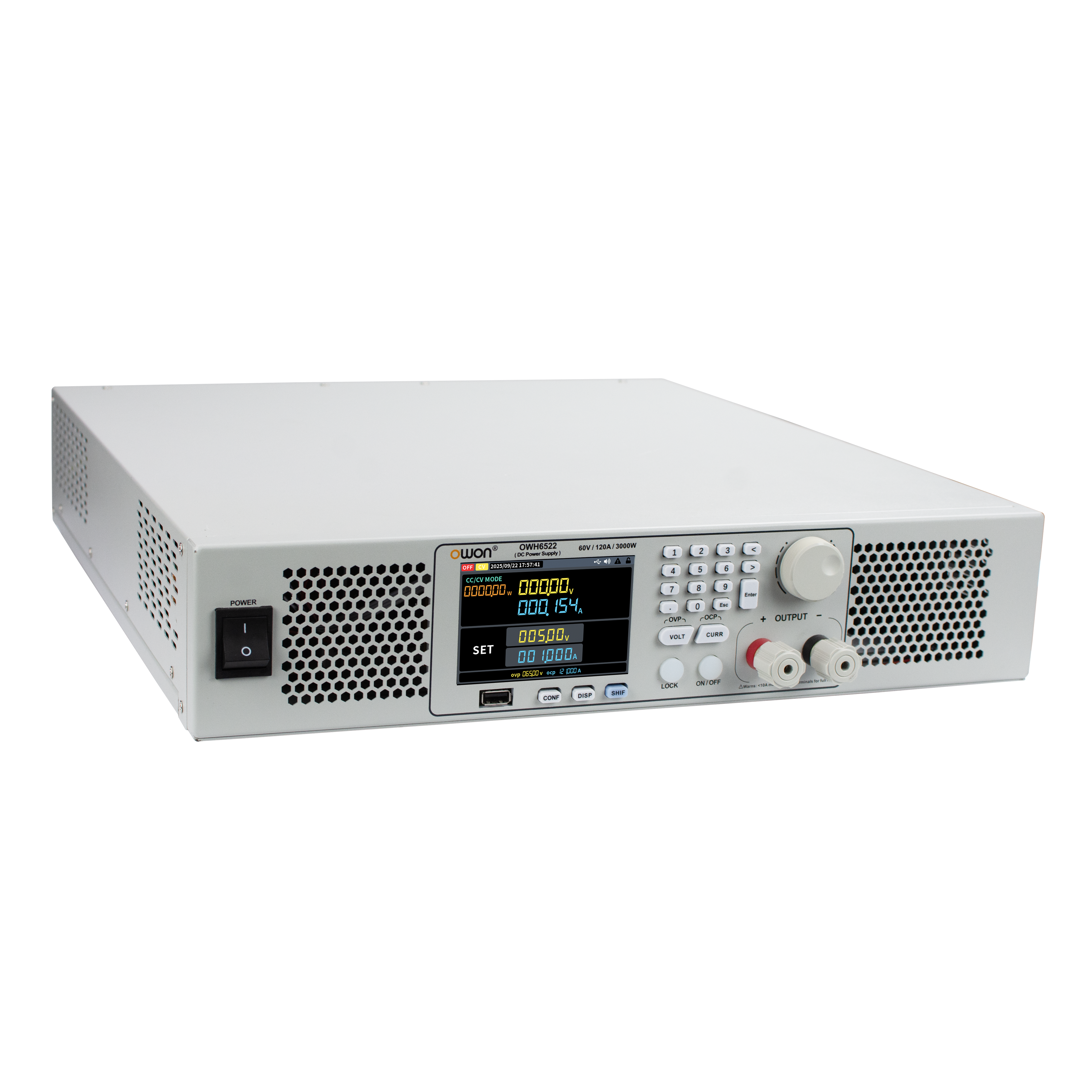

OWH6522 60V/120A Programmable DC Power Supply

+ 2U form factor, perfectly fits standard 19-inch racks.
+ 3000W wide-range output (60V/120A) with up to 0.05% accuracy.
+ 10mV/1mA setting and readback resolution.
+ Selectable CV/CC priority mode for diverse load characteristics.
+ Supports up to 100-step LIST sequence programming and PC control.
+ Built-in P-V curve simulation to accurately simulate solar panel I-V characteristics.
+ Fully digital control with integrated OVP, OCP, and OPP protections.
+ Standard USB CDC, RS485, and Ethernet interfaces; SCPI compatible.
+ 3.9-inch TFT color display for real-time viewing of dynamic waveforms and test parameters.
Send Inquiry
Product Details

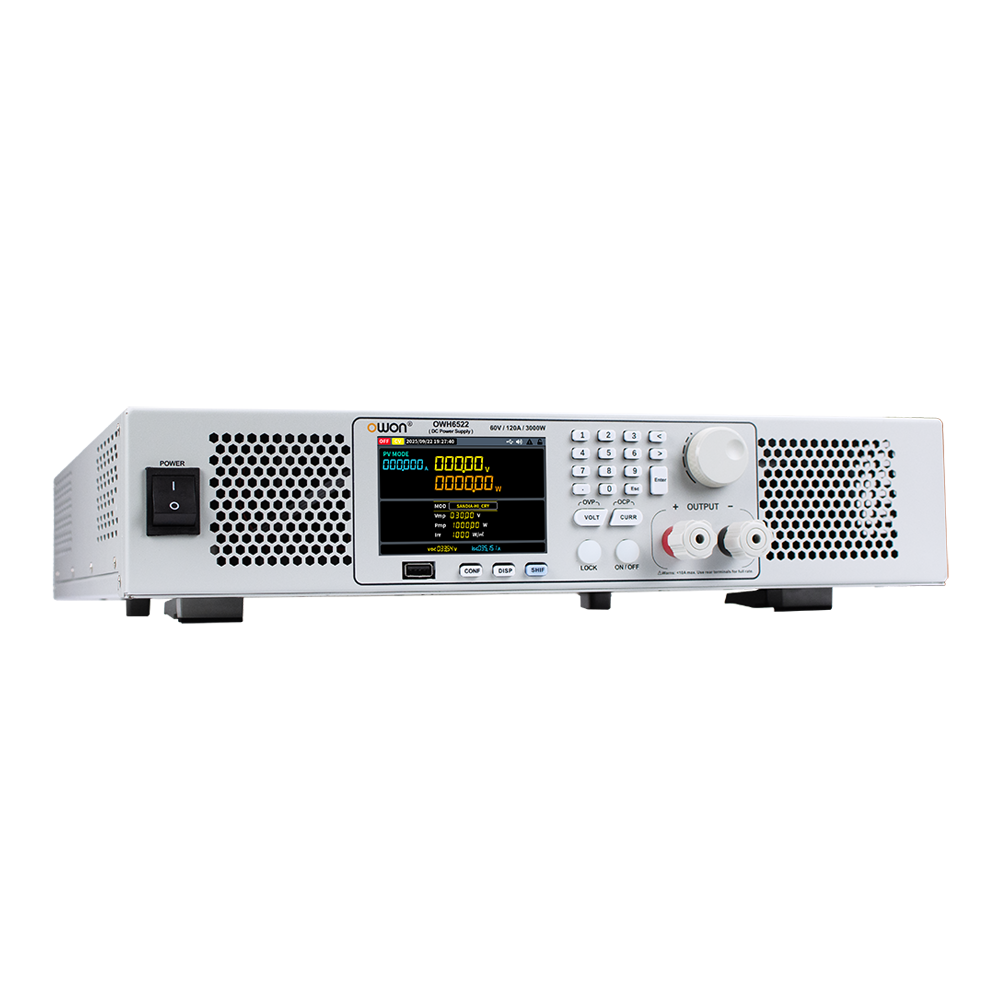

2U Chassis with 3000 W Precision Output

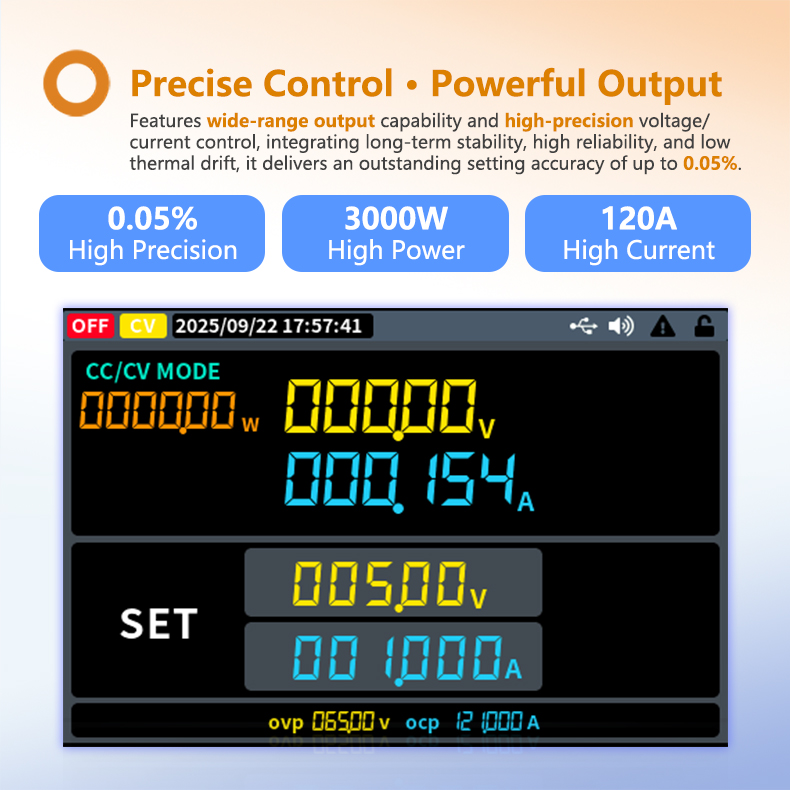

The standard 2U chassis delivers 0 to 60 V, 0 to 120 A, and 3000 W output, with 10 mV/1 mA setting and readback resolution, voltage and current setting accuracy as tight as 0.05%, and a transient recovery time of ≤5 ms.

Real-Time Waveforms and Extended Data Logging

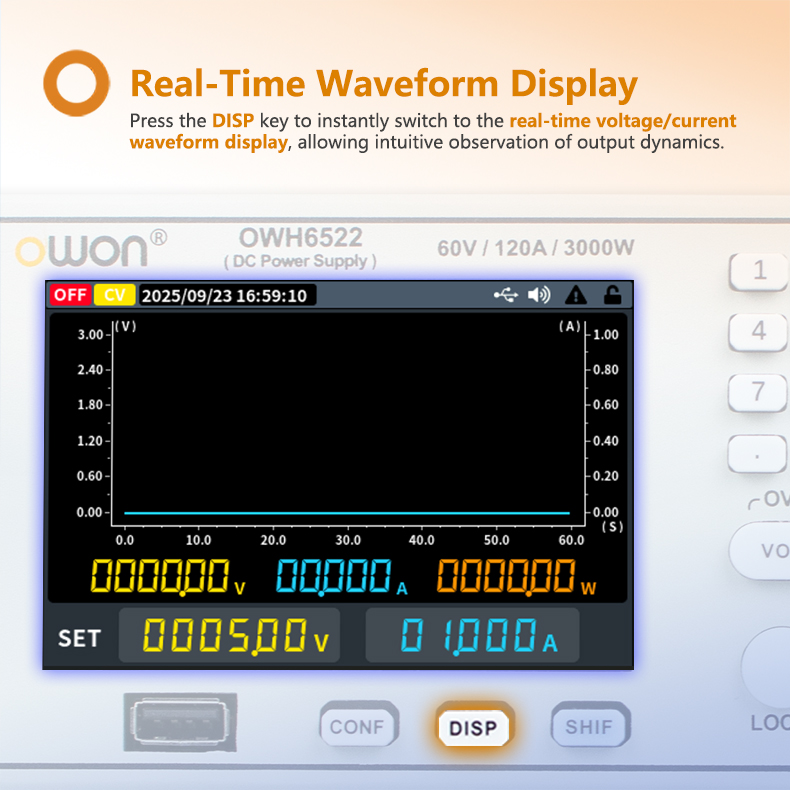

Switch to real-time voltage and current waveforms with one touch for a clear view of output dynamics. USB screenshot capture and local data logging enable anomaly monitoring for up to 72 hours, simplifying result storage and troubleshooting.

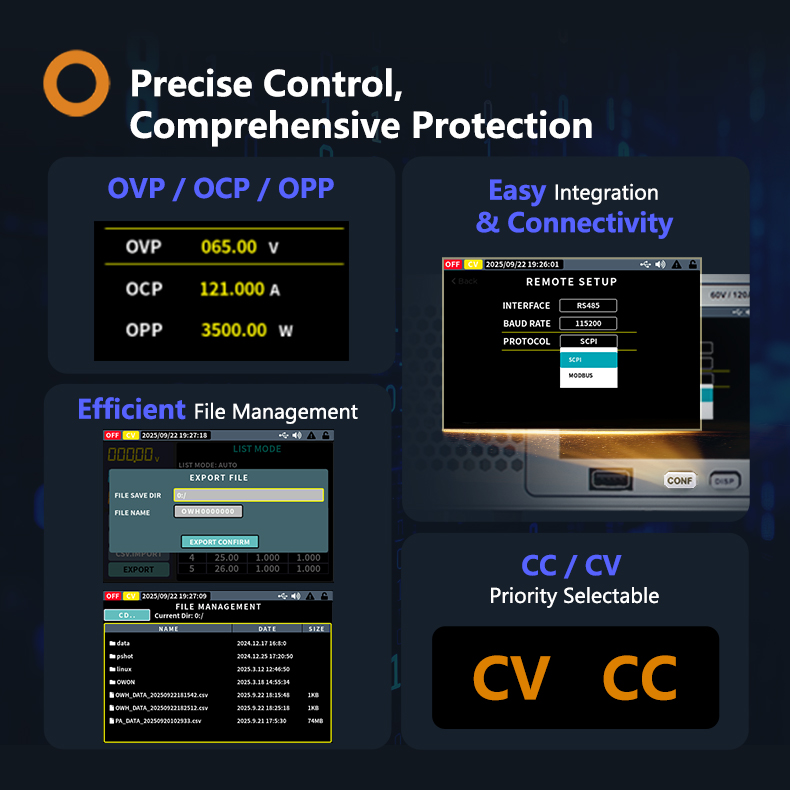

CC/CV Priority Modes

Switch between CC/CV priority modes. Adjustable voltage and current slew rates help suppress startup overshoot and accommodate a wide range of DUTs.

100-Step Sequencing and Dynamic Monitoring

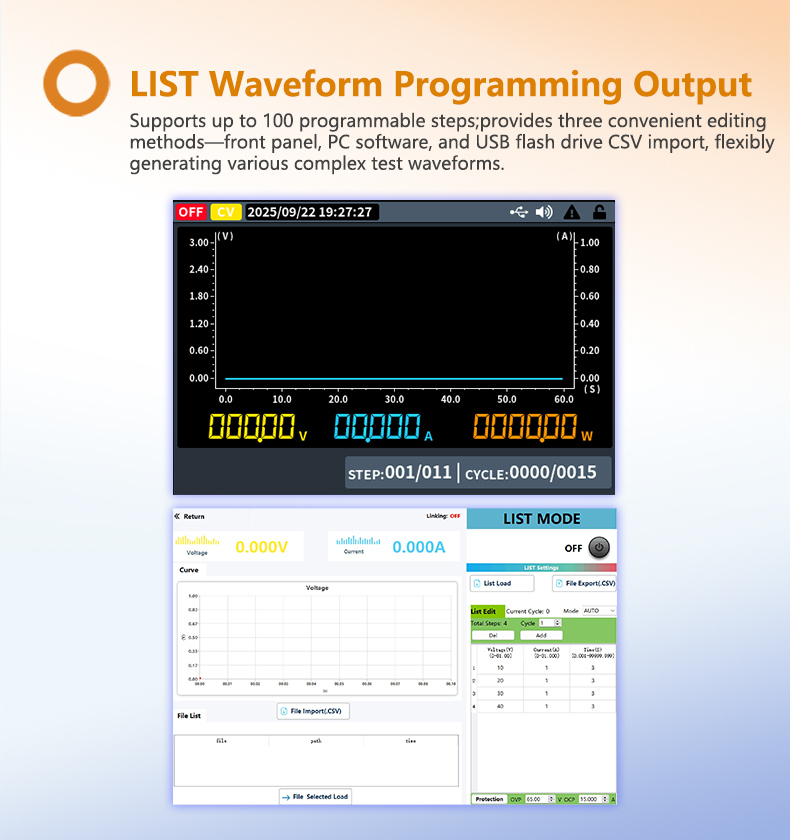

The LIST function supports up to 100 programmable output steps, configured from the front panel, PC software, or a CSV file imported via USB. Real-time voltage and current waveforms make output dynamics easy to monitor and anomalies quick to identify.

Professional PV P-V Curve Simulation

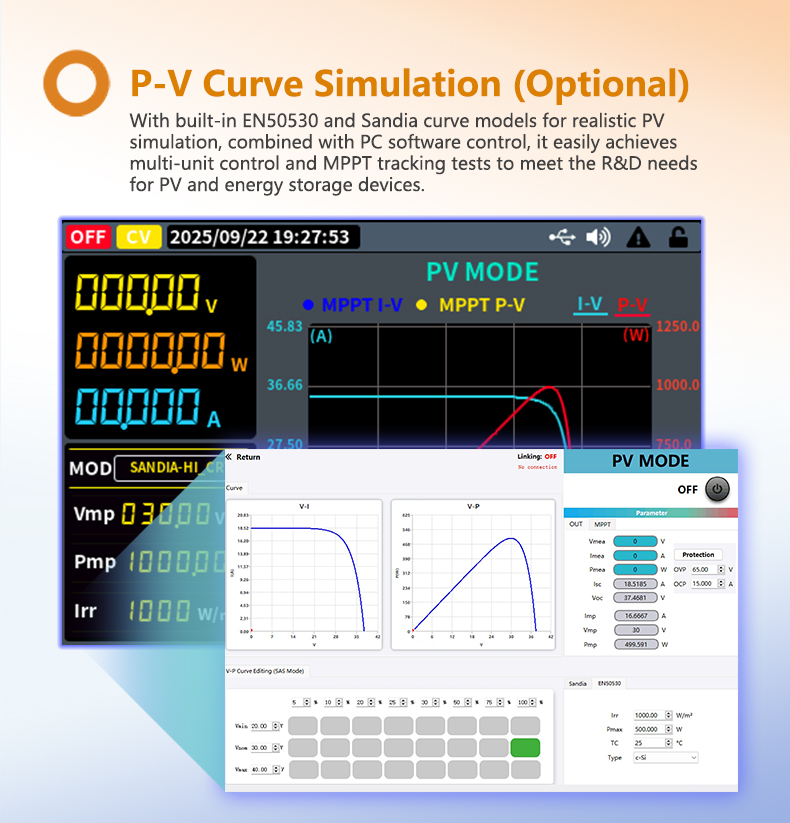

Optional P-V curve simulation reproduces solar panel I-V characteristics under different environmental conditions. Built-in EN 50530 and Sandia models support static MPPT efficiency testing and coordinated control of multiple power supplies.

Versatile Interfaces for Easy System Integration

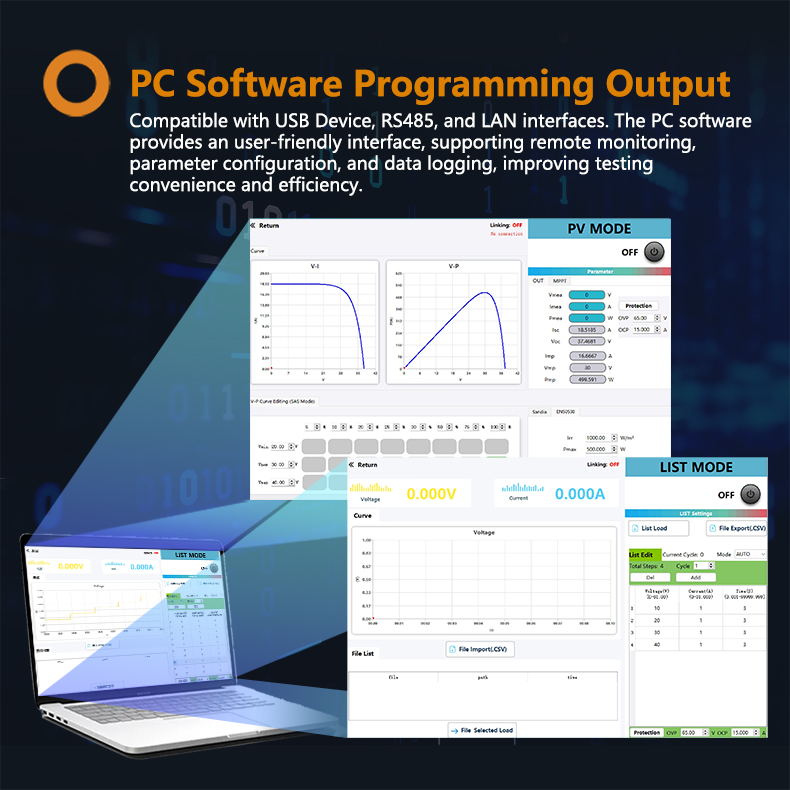

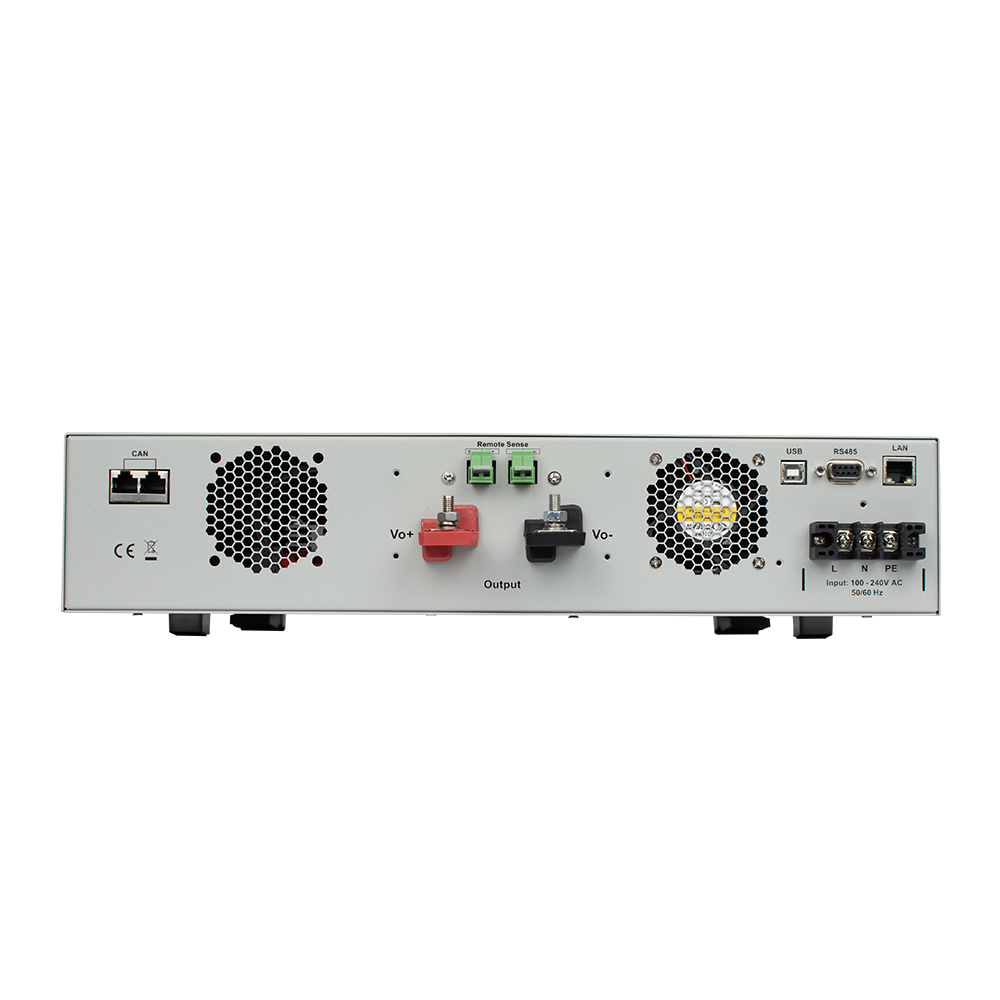

Standard USB Device, RS485, and LAN interfaces support SCPI commands. The PC software enables remote monitoring, parameter configuration, and data logging. Also provided are a front-panel USB Host port, remote-sense terminals, DC output terminals, and AC input terminals.

Specifications

The instrument must be operated continuously for more than 30 minutes at the specified operating temperature to achieve the following specifications

Model

OWH6522

Channel

1

Rated output

(0℃-40℃)

Voltage

0 - 60V

Current

0 - 120A

Power

3000W

Input power

100V-240Vac*1;45Hz-65Hz

Load regulation*2

CV

≤30mV

CC

≤60mA

Input power regulation

CV

≤30mV

CC

≤60mA

Setting resolution

10mV/1mA

Readback resolution

10mV/1mA

Setting accuracy

Voltage

≤0.05% ± 30mV

Current

≤0.1% ± 120mA

Readback accuracy

Voltage

≤0.05% ± 30mV

Current

≤0.1% ± 120mA

Ripple noise

Voltage

≤80mVp-p

Current

≤120mArms

Output temp drift coefficient

(0℃-40℃)

100ppm/℃ (Voltage);200ppm/℃ (Current)

Readback temp drift

100ppm/℃ (Voltage);200ppm/℃ (Current)

Transient response (10%-90% rated load)

≤5.0ms

Working temperature

0-40℃

Display

3.9-inch TFT LCD screen

Interface

USB,LAN,RS485

Dimension(W*H*D mm)

428mm * 88.0mm * 446mm

Weight (kg)

Approx. 13kg

*1: Output power is derated at low input voltage. Max input current ≤ 16 A.

*2: The detection point of this indicator is the voltage compensation terminal.

Support
Accessories


General Accessories


NameOrder Number
Quick Guide————

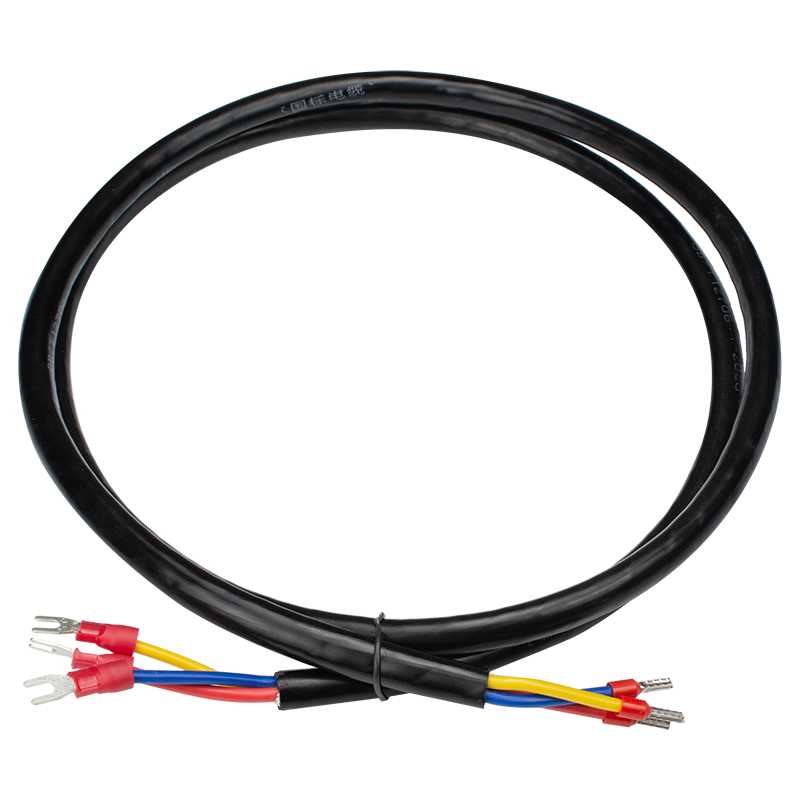

Power Cord7Power-1 / 7Power-4(EU)

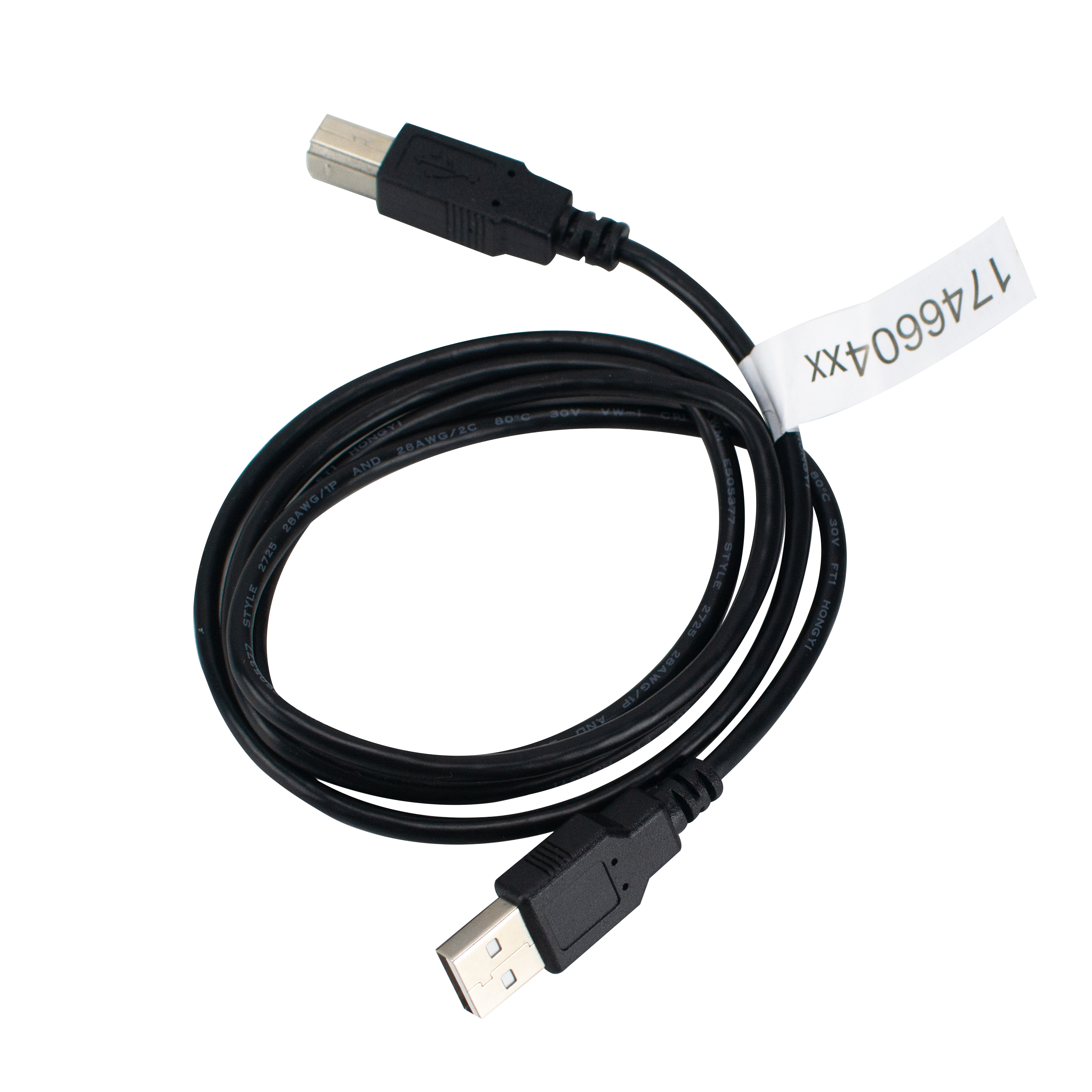

Data Cable7ULD10
Pluggable Terminal7Term-1

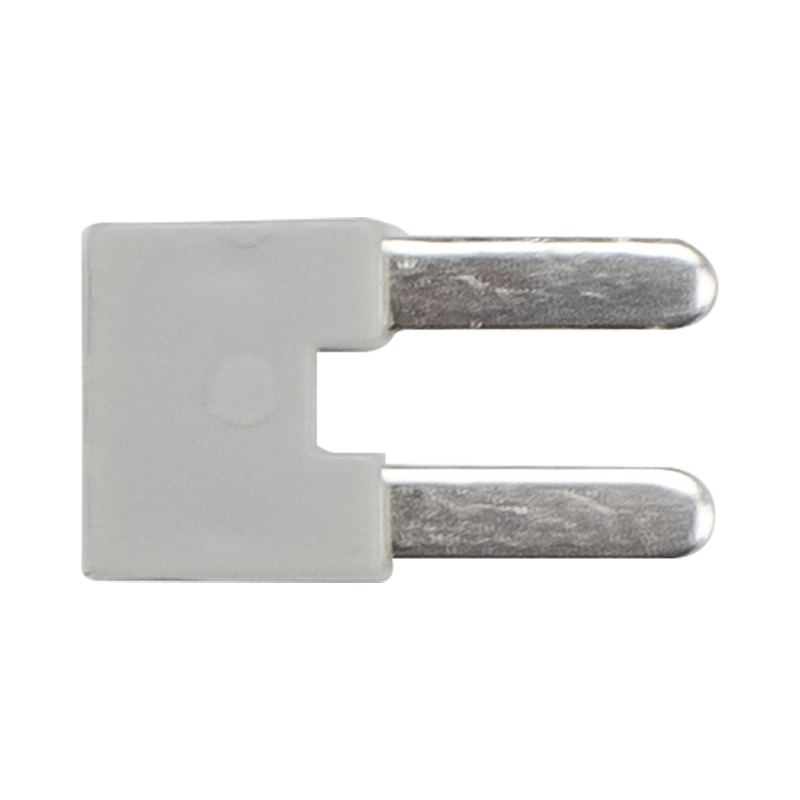

Copper Shorting Bar7Short-1
